3D Ducting + BOM

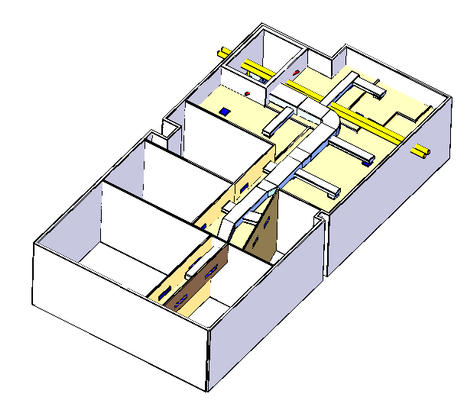

This automation gets a 3D drawing of entire ducting+ for a given area - with AHU/IDU, False Ceiling, Air Outlets / RA Inlets, Dampers etc PLUS allow you to define your air velocities/type etc for each duct piece. Based on the parameters you define, you can then get a BOM i.e. a gauge-wise & item wise Bill of Material.

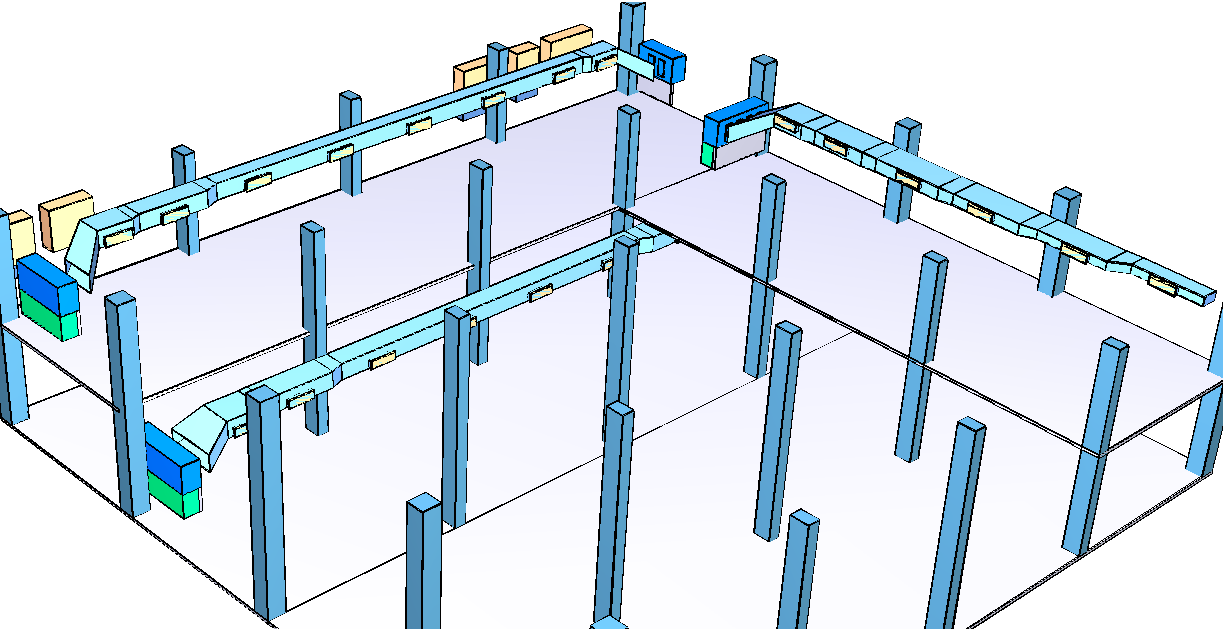

When ready it will be available initially as a Single 3D Ducting drawing which can then be copy pasted at ANY LOCATION in a 3D Building drawing i.e you can generate multiple area-wise ducting/project & copy-paste it in multiple areas of the project 3D building. BOM details will be added at a later stage. Initially, as with other DA services, this service will have typically a revert time of 24 hrs.

Currently this is available as a Offline service. Please use Contact Us to tell us what you need & we will get in touch.

We appreciate your interest in this service and shall inform you by email & SMS, as soon as it is available online here.
